Air evaporator change-over

Automatic air evaporator changeover from LT GASETECHNIK – tested at the factory, for easy installation on the construction site

We currently offer the following options for the LT ALU automatic air evaporator changeover in the basic equipment as standard:

  • Console, fittings height-adjustable
    • Sikla screwed
    • Stainless steel welded
  • Stainless steel valve only switching
  • Stainless steel ball valves Switching or opening of both evaporators incl. Stainless steel pipe section PN40
    • Nominal diameters DN25, DN40 or DN50
    • Position feedback
    • Temperature monitoring with PT100
    • Preparation of control medium from evaporator medium
    • Counter flanges with welding flanges, screw sets, gaskets
  • Large roof that also covers the ball valves
  • Control air treatment
  • 2 x position feedback for the ball valves
  • Integrated gas preheater to ensure a minimum temperature, with temperature sensor and control
  • Material certificates for components that come into contact with the medium (foodstuffs, FDA, 3.1)
  • Horn/flashing light
  • Wireless configuration
  • Network connection Modbus
  • Network connection Profibus/Net
  • Data logger/ USB interface
  • Larger display (6″)



We are happy to offer the following special solutions on request:

  • Provision of fittings
  • Fittings according to your specification
  • ALU for 4 or more atomizers
  • Copper piping
  • Nominal diameters > DN50
  • Cryogenic valves -196 °C
  • Cryogenic ball valves -196 °C
  • Oxygen version
  • ATEX version
  • SIL brittle fracture monitoring

Interested?

Send us your questions or ask for a quotation

Contact

Air evaporator switchover tested at the factory, for easy installation

The systems contain preconfigured programs that are easy to parameterize. Optionally, the systems can be equipped with a GSM modem for sending SMS or e-mails, valve groups for the evaporator outlet side or inlet side and as a fully assembled console incl. Control, piping and valves for quick and easy on-site installation.



Also take a look at our blog!

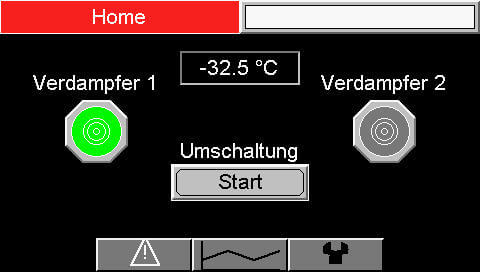

Software interface of the LT Automatic Air Evaporator Change Over
Software interface of the LT Automatic Air Evaporator Change Over

Blog posts on the topic

Lean air with SIL2 for pigging and inerting
 1024 446 Alexander Hanf
By:

Magerluft mit SIL-2 LT again successfully delivers a lean air system. The system can generate 200 Nm³/h of synthetic air from nitrogen and compressed air. Of these, approx. 50 Nm³/h…

read more
Safe lean-air supply of resin processes with – new article in the Asia Pacific Coatings Journal
 1024 199 Alexander Hanf
By:

The article in the February 2021 issue of APCJ describes the possibilities to meet the requirements of lean air system operators for quality, safety and availability. The aim is…

read more
Automatic vaporizer change-over for medical oxygen
 772 1024 Alexander Hanf
By:

LT GASETECHNIK delivers automatic evaporator change over – as well for medical oxygen. Here is an example of a currently delivered version: Flow: 140 Nm³/h Medium Oxygen -10…+40 °C Control…

read more
Lean air gas mixer with SIL 1
Avoiding explosions with atmosphere control
 304 499 Alexander Hanf
By:

Explosive atmospheres in vessels are for example created by dust (ground products) or by degassing (production or storage of flammable substances). Covering with pure nitrogen can be undesirable. Either…

read more
All blog posts on the topic

Galery

Automatic Air Evaporator Change Over
Automatic Air Evaporator Change Over
Automatic Air Evaporator Change Over
Automatic Air Evaporator Change Over with valves and large roof
Automatic Air Evaporator Change Over with valves and large roof
Automatic Air Evaporator Change Over with valves and large roof
Automatic Air Evaporator Change Over in console without valves or any options
Two Automatic Air Evaporator Change Over
Automatic Air Evaporator Change Over in console without valves or any options
Automatic Air Evaporator Change Over
Automatic Air Evaporator Change Over
Automatic Air Evaporator Change Over in console with a 3-2 way cryo valve
Low temperature switch off with bypassLow-temperature switch off with resistance thermometer, cryo shut-off valve, control module as a compact PLC in a field cabinet, built plug + play in a frame with a roof including flashing light and hornLow-temperature switch off with resistance thermometer, cryo shut-off valve, control module as a compact PLC in a field cabinet, built plug + play in a frame with a roof including flashing light and horn
Low-temperature switch off with resistance
Low-temperature switch off with resistance thermometer, cryo shut-off valve, control module as a compact PLC in a field cabinet, built plug + play in a frame with a roof including flashing light and horn
Low temperature switch off with flow heater
Low-temperature switch off with resistance thermometer
Low-temperature switch off with resistance thermometer, cryo shut-off valve, flow heater, control module as a compact PLC in a field cabinet with a thyristor controller, built plug + play in a frame with a roof including flashing light and horn
